Introduction

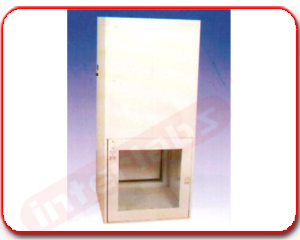

Pass box in an equipment used normally for transfer of material from & into the clean room without contaminating the clean room air & without opening the clean room door. The two opposite doors are interlocked & only one door can be opened at a time. Fluorescent light in automatically put ON at the time of opening nay one of the doors. The doors have glass window for viewing the material kept there in.
Salient Feature
It is specially designed equipment where in a HEPA filter has been provided & the motor blower unit is automatically put ON at the time of opening any of the doors. It thus act as a pressure chamber. Only clean air can enter the clean room through pass box, because clean air through HEPA filter is put ON immediately automatically on opening any door. The clean room air is thus not contaminated by the air of pass box.
Fluorescent light is provided for visibility of item kept in the pass box & it is ON at the time of opening any of the door for taking out or putting in the material in the pass box. UV light can be optionally provided which will be put ON only on closing the door, that is UV light will be permanently ON for sterilizing the material kept in the pass box & it will be off at the time of opening the door, so that human eye is not effected by UV light.Buzzer Switches are provided on both doors to signal for material insertion/removal.
Construction
These are elegantly designed & manufactured from commercial board & all external & internal surfaces are laminated. SS/Alum/MS sheet duly powder coated body can optionally be supplied.
Power Requirement
Suitable to work on 220V, 1 ph, 50 Hz AC supply.
Size 😕 24"(W) ? 24"(H) ? 24"(D).
Other sizes on request.
Pass Box with HEPA Filters (Class 100) (Filtered Air Material Transfer Windows) (New) for Institutional & Laboratory Applications
Pass Box with HEPA Filters (Class 100) (Filtered Air Material Transfer Windows) (New) is designed for educational institutions, research centers, universities, and laboratory facilities. Interlabs manufactures export-quality educational laboratory equipment for institutional procurement projects, technical education programs, laboratory modernization, and international supply requirements across Tanzania, Uganda, Ethiopia, and Rwanda.
Applications of Pass Box with HEPA Filters (Class 100) (Filtered Air Material Transfer Windows) (New)
This equipment is widely used for practical learning, institutional research, technical demonstrations, and laboratory education. It supports practical learning environments, institutional laboratory setups, technical training programs, and advanced educational applications.
Suitable For
- Universities and educational institutions
- Research laboratories and training centers
- Government and institutional procurement projects
- African laboratory infrastructure programs
- Technical and vocational education facilities
Explore Related Laboratory Equipment
Interlabs also supplies Advanced Communication Trainers, Autoclaves, Compressor & Vacuum Pumps for educational institutions, engineering laboratories, research centers, hospitals, and export projects.
Why Choose Interlabs?
- Educational laboratory equipment manufacturer and exporter
- OEM and custom manufacturing support available
- Export-ready packaging and documentation assistance
- Suitable for institutional and government projects
- Global shipping and bulk supply capability
Global Export Support
Interlabs supplies laboratory equipment and institutional training systems to buyers across Tanzania, Uganda, Ethiopia, and Rwanda with secure export packaging, documentation support, and international logistics assistance.
