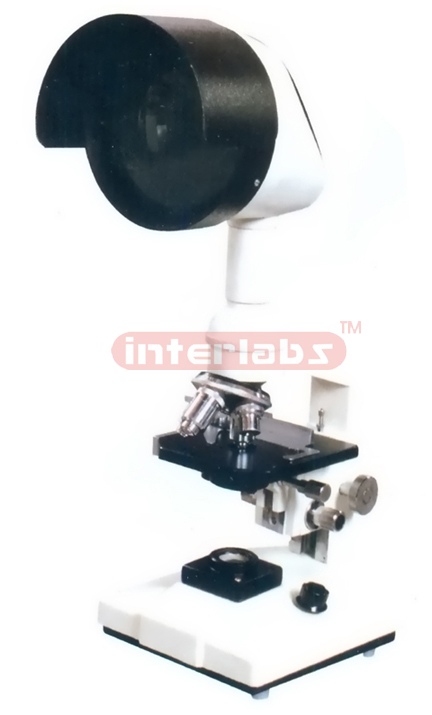

All microscopic slides become visible to the naked eye by taking the projection image on the screen, during demonstration to a group of students. This microscope is compact in design and can be easily operated for long duration. It provides distortion free high contrast magnified image. • Body Monocular straight fixed tube. Mechanical tube length 160mm ±1mm.
• Stage Square fixed stage size 120 x 120mm fitted with graduated detachable mechanical stage for convenient slide manipulation. · Stand Stable robust, aluminium Die-Cast parts. Nose Piece Triple revolving nose piece with positive centering and click stop.
• Focusing By separate knobs for coarse and fine focusing. Course adjustment can be made through rack-pinion and fine movement by screw-lever mechanism. • Safety Device: Upper stopper for preventing accidental damage to slides. · Condenser Fixed built-in lamp NA 0.65 · Illumination 20W Halogen bu,lb is provided with solid state variable light control knob for adjusting the intensity of light, along with ON/OFF switch. Lamp slots are provided for natural cooling of the illuminator. Transformer is built in the base, operates on 220V AC, 50Hz.
• Screen 150mm diameter ground glass projection screen is provided for trouble free viewing, rotatable on microscope tube in all directions.
• Accessories : Vinyl dust cover, duster, cleaning brush, and spare bulb. Packing In wooden case with lock and key. Objectives : Achromatic 5x, 10x and 20x. Huygenian, Eye Pieces 10x and 15x.
