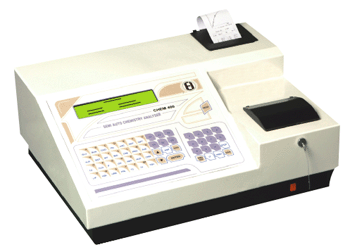

Semi Auto Chemistry Analyser Compact, Reliable, High Performance Instrument for Biochemical Tests, Enzymes, Hormones, Plasma Proteins, TDAs, Electroytes
FEATURES
- 100 Open Tests
- 40 x 4 line LCD Display
- Graphical Thermal Printer
- 28 Quick Access Test Keys
- 18µL Flow cell Volume
- Peltier Controlled Thermostat
- User Friendly Software
- Auto lamp Shut Off
- Programmable Air Gap Aspiration
- Repeat Measurement of Sample in Flow cell
Applications
- Highly useful for blood analysis
- Biochemistry measurements in hospital and clinical labs.
Specifications
| Optical System | ||
| LIGHT SOURCE | 6V 10W , Halogen Lamp | |
|
SPECTRAL FIELD |
340 to 700 nm | |
|
FILTER CHANGE |
Automatic Stepper motor Driven | |
|
FILTERS |
340, 405, 505, 546, 578, 630, 670nm + provision for the user defined filter | |
|
DETECTOR |
Silicon photo diode | |
| Thermostat | ||
|
HEATING ELEMENTS |
Refrigerating and heating Peltier cell | |
|
TEMPERATURE |
25ºC, 30ºC, 37ºC Selectable | |
|
Flow System |
||
|
FLOWCELL |
18ul capacity flow through cell | |
|
TYPICAL WORKING VOL. |
500ul | |
|
MINIMUM WORKING VOL. |
350ul | |
|
INTAKE |
Peristaltic pump with programmable intake volume | |
|
CUVETTE OPTION |
Available for micro & macro cuvettes | |
|
Measuring System |
||
|
MEASURING RANGE |
0 to 2.500 Abs | |
|
PHOTOMETRIC LINEARITY |
±1% from 0 to 2.000 Abs | |
| PHOTOMETRIC ACCURACY |
±0.005 Abs. from 0 to 0.500 Abs |
|
|
WASH FUNCTION |
Programmable volume | |
|
MEASURING METHOD |
End Point, Differential, Kinetic, Fixed Time, Multistandard, Aborbance modes (Mono or Bichromatic), Coagulation. | |
|
CALIBRATION |
Automatic against standard | |
|
ZERO ABS |
Automatically set | |
|
Data Display and Programming |
||
|
KEYBOARD | 57 Keys, Soft Touch Membrane type | |
| QUICK TEST KEYS | 28 quick test keys, defining the most commonly used tests. | |
| DISPLAY | 40×4 character back illuminated alphanumeric LCD. | |
| THERMAL PRINTER | Built in high resolution 2” thermal printer with graphics capability | |
| EXTERNAL PRINTER | Hardware Ready | |
| MEMORY CAPACITY | 100 test programs ( All open) | |
| SERIAL OUTPUT | RS 232 Standard | |
| Physical Features | ||
|
SIZE |
470L X 365D X 85H mm (approx.) | |
| WEIGHT | 11 Kg. (approx.) | |
|
Sample Storage |
||
| For 100 sample with patient name and number (ID) printing option. | ||
|
Quality Control |
||
| Provision for QC control and there result stored. | ||
