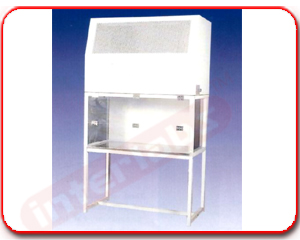

Interlabs offers a comprehensive range of high performance Vertical Laminar Flow Clean Air Cabinets. Modular in construction, combining aesthetic appeal with functional utility and efficiency. These are designed to meet the filtration, illumination, Noise & vibration requirements and US Federal Standard 209 B (BS 5295), providing air to meet class 100 (Class I) conditions, to the extent applicable.
These vertical laminar Down Flow configuration find extensive application in Scientific, Medical and Industrial application where a localized high quality clean working environment is essential. These are designed to provide an atmosphere free from airborne particles with Laminar air flow flowing downward the work table.
Construction 😕 All Laminar Flow Clean Air Cabinets are basically constructed out of thick teak wood board , which is termite and insect proof, fire retardant and weather resistant. All exterior surfaces are covered with white Laminates. Interior surfaces are epoxy painted. Work table is made of mica top and side panels of thick transparent plexiglass
Air Flow and Filtration 😕 Laminar Flow principle involves double filtration of air. Atmospheric air is drawn through pre filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all airborne particles of size 0.3 micron and larger. Double filtered air blows in laminar flow through the work table at designed velocity of 90 ft. min ? 20%.
Blower Motor Assembly 😕 Duly balanced, direct drive motor blower units sized to provide adequate air flow volume over the entire surface of HEPA filter. Fitted with reputed make motor and operates with minimum noise level i.e. lower than 65 db on scale and Vibration less than 2.5 um.
Lighting 😕 Work area properly illuminated by diffused, glare free fluorescent light.
Power Requirement 😕 230 V. 1 Phase, 50 Hz, Ac Supply.
Optional Accessories 😕
? Satin finish S.S. Table Top (in lieu of Sunmica Top)
? Transparent front door ? Static pressure inclined manometer
? Built in UV Germicidal light
? Cock for gas, air or vacuum line
? Cold rolled MS sheet body of top chamber duly powder coated, available at extra cost.
? Stainless Steel body of top chamber, duly polished, available at extra cost.
? Particle dust count validation at site after installation, at extra cost.
Spare Accessories 😕
? HEPA Filter
? Pre Filtern.
